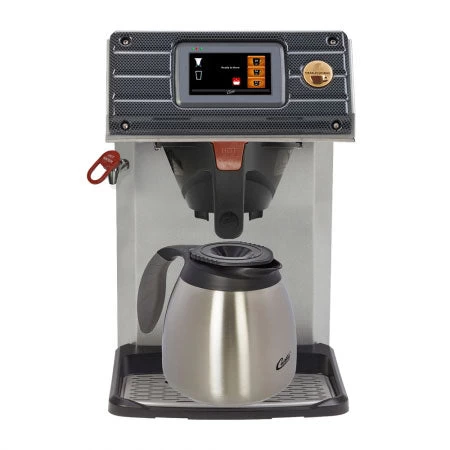

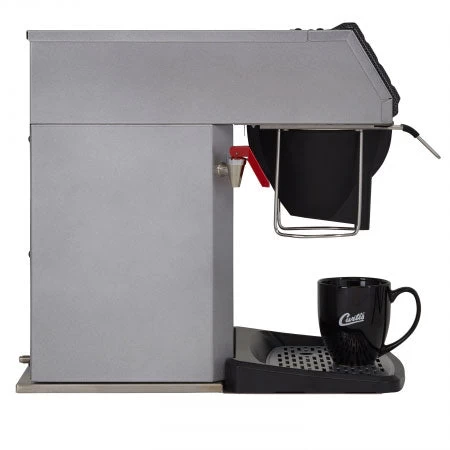

Wilbur Curtis G4 CGC Single Cup Coffee Brewer – Single

The Curtis Gold Cup Brewer is an easy-to-use single-cup brewer that delivers American Style Coffee with the push of a button. Perfect for coffee roasters.

Curtis Gold Cup Brewer Features

• Generation Four (G4) Digital Control Module – Large, 4.3″ touch screen. Icon-driven interface streamlines operation.
• On-Screen Instructions – Provides fast, intuitive training; reduces service calls.
• Built-In Self Diagnostic System.
• Energy Saving Mode.
• Gold Cup Series – Programmable Time, Temperature, Volume, Pre-Infusion, Pulse-Brewing, And Bypass.
• Pre-Set, One-Touch Global Recipes – Based On Coffee Type, Grind And Weight. Simplifies Profile Setting For Gourmet Results Every Time.
• Industry’s Most Effective Mineral Tolerant Design.
• Patented Fast-Wetting AFS Sprayhead.

About the Brand

Wilbur Curtis has been a top-quality brand in the batch brewer business since 1941 and is still a family-run business. Consequently, they continually offer the market innovative and advanced technologies and were the first company to introduce a satellite brewing system: an advancement that allows for remote coffee stations making brewing easier with the ability to track freshness from across the room. Their brewers are also known for some of the best extractions among the classic brew batch manufacturers and offer precise control over all aspects of brewing; time, temperature, volume, plus specialty coffee needs like pre-infusion, pulse-brewing, and water bypass. Wilbur Curtis also demonstrates environmental responsibility for their entire business operation and offers equipment that is eco-friendly. A few examples are the use of solar panels at headquarters and the support of World Coffee Research. They also take reuse to a whole new level by reusing shipping materials and save 1800 liters of water every day by reusing water that would otherwise be wasted on brewer wet-tests. In addition, Wilbur Curtis equipment offers brews with gourmet results and brewing equipment that’s intelligent, intuitive, instinctive, and artistic. Start brewing with one today.

Split

DIMENSIONS
Height (in.)	18.250″
Width (in.)	13.250″
Depth (in.)	21.000″
Cup Clearance	6.88″
Brewer Fill Weight	48.2 lbs.
Brewed Gal/Hr	4.3/5.0
ELECTRICAL
Phase	1/1
Volts	120/220V
Amps	12.5/10.8A
Heat Configuration	2 x 1450W
Wire	2W+G/3W+G
Watts	1500/2379W
Hertz	50/60 Hz
WATER
Connector	1/4″ Flare
Pressure	20 – 90 psi
Min. Flow Rate	1.0 GPM
Tank Volume	1.7 Gal.
GENERAL
Certification	NSF, UL Listed.
Warning	Proposition 65 Warning – Applies to the State of CA only.
