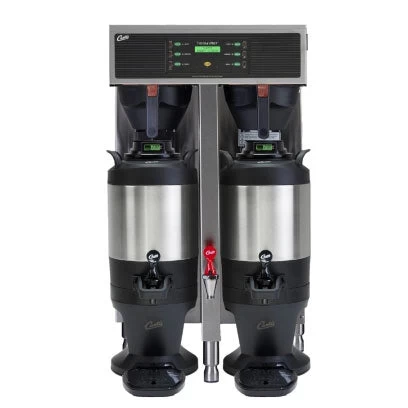

Wilbur Curtis G3 Twin 1.5 Gallon Coffee Brewer W/ TFT Dispensers

Curtis G3 Technology combines precision brewing capability with an easy-to-use interface. All brewing functions are displayed in real-time, not a coded system of indicators. Curtis ThermoPro systems are factory set for out-of-the-box operation with pre-programmed recipes that ensure a consistent brew, every time. And with scroll-through menus, it’s just as easy to fine-tune the brewing process for your exacting gourmet coffee profile.

G3 Coffee Brewer Features

• G3 Digital Control Module provides precise control over all aspects of brewing in an intuitive, easy-to-operate system.
• Pre-Set Global Recipes at the touch of a single button – no complex equipment required.
• Stainless steel ThermoPRO vacuum-sealed servers keep coffee fresh, hot, and flavorful.
• Single unit is field selectable for One, Two, or Three Batch brewing.
• Enhanced Recovery Circuitry – boosts performance on 220V/single phase models.

Recommended dispensers sold separately; TXSG1501S600, TXSG0101S600,  TFT15G, TFTR15G, & TFT15G3.

About the Brand

Wilbur Curtis has been a top-quality brand in the batch brewer business since 1941 and is still a family-run business. Consequently, they continually offer the market innovative and advanced technologies and were the first company to introduce a satellite brewing system: an advancement that allows for remote coffee stations making brewing easier with the ability to track freshness from across the room. Their brewers are also known for some of the best extractions among the classic brew batch manufacturers and offer precise control over all aspects of brewing; time, temperature, volume, plus specialty coffee needs like pre-infusion, pulse-brewing, and water bypass. Wilbur Curtis also demonstrates environmental responsibility for their entire business operation and offers equipment that is eco-friendly. A few examples are the use of solar panels at headquarters and the support of World Coffee Research. They also take reuse to a whole new level by reusing shipping materials and save 1800 liters of water every day by reusing water that would otherwise be wasted on brewer wet-tests. In addition, Wilbur Curtis equipment offers brews with gourmet results and brewing equipment that’s intelligent, intuitive, instinctive, and artistic. Start brewing with one today.

Split

DIMENSIONS
Height (in.)	35.130″
Width (in.)	20.130″
Depth (in.)	20.750″
Brewer Fill Weight	125.6lbs.
Brewed Gal/Hr	15.0/21.0
ELECTRICAL
Phase	1
Volts	220V
Amps	23.0/34.5A
Heat Configuration	3 x 2500W
Wire	3W+G
Watts	5100/7600W
Hertz	50/60 Hz
WATER
Connector	3/8″ Flare
Pressure	20 – 90 psi
Min. Flow Rate	2.0 GPM
Tank Volume	6.9 Gal.
GENERAL
Certification	NSF, UL Listed.
Warning	Proposition 65 Warning – Applies to the State of CA only.
