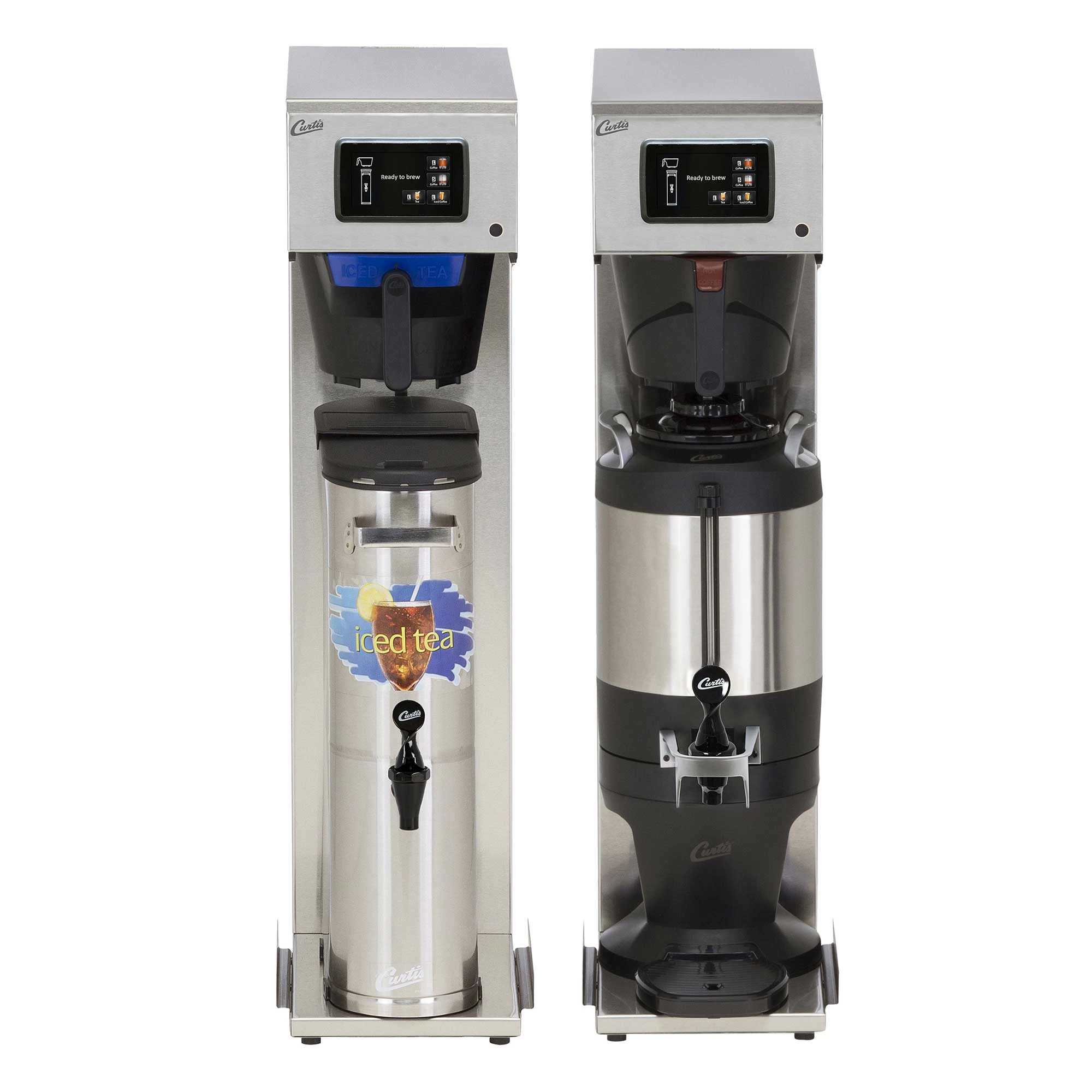

G4 3.0 Or 1.5 Gallon Tea & Coffee Combo Brewer – Single

Whether you’re running a busy convenience store, diner, or cafe, this brewer has everything you need to keep your beverage production moving. With its powerful 12800W heating element, you can quickly brew up to 3 gallons of refreshing iced tea or 1.5 gallons of smooth, flavorful iced coffee. And thanks to its combination design, you can easily switch between tea and coffee depending on your customers’ preferences.

G4 Single Tea/Coffee Combo Brewer Features

What really sets the Curtis G4CBHS apart is its advanced digital control module. Using Curtis’ exclusive generation four (G4) technology, this brewer features a large, user-friendly touchscreen that puts complete control at your fingertips. Whether you need to adjust the temperature, brewing time, or product volume, the intuitive icon-driven interface makes it easy for any employee to operate the brewer with precision and accuracy.

• Generation Four (G4) digital control module – large, 4.3″ touch screen.
• Multiple beverage options – designed to brew up to 1.5 gallons of hot coffee or up to 3.0 gallons of iced tea or iced coffee within seconds.
• “Fast Brew” option.
• Cold brew lockout.
• On-Screen Instructions – provides fast, intuitive training; reduces service calls.
• Encapsulated Control Board – protects against steam, water, and impact.
• Built-in self-diagnostic system.

Recommended dispensers sold separately; TCN, TFT15G.

About the Brand

Wilbur Curtis has been a top-quality brand in the batch brewer business since 1941 and is still a family-run business. Consequently, they continually offer the market innovative and advanced technologies and were the first company to introduce a satellite brewing system: an advancement that allows for remote coffee stations making brewing easier with the ability to track freshness from across the room. Their brewers are also known for some of the best extractions among the classic brew batch manufacturers and offer precise control over all aspects of brewing; time, temperature, volume, plus specialty coffee needs like pre-infusion, pulse-brewing, and water bypass. Wilbur Curtis also demonstrates environmental responsibility for their entire business operation and offers equipment that is eco-friendly. A few examples are the use of solar panels at headquarters and the support of World Coffee Research. They also take reuse to a whole new level by reusing shipping materials and save 1800 liters of water every day by reusing water that would otherwise be wasted on brewer wet-tests. In addition, Wilbur Curtis equipment offers brews with gourmet results and brewing equipment that’s intelligent, intuitive, instinctive, and artistic. Start brewing with one today.

Split

DIMENSIONS
Height (in.)	36 11/16″
Width (in.)	10 1/16″
Depth (in.)	22 13/16″
Brewer Fill Weight	72.0 lbs.
ELECTRICAL
Phase	1 phase
Volts	220V
Amps	12.7A
Min Circuit	20A
Heat Configuration	2 x 1600W
Wire	3W+G
Watts	2800W
Hertz	60 Hz
WATER
Connector	1/4″ Flare
Pressure	20 – 90 psi
Min. Flow Rate	1.0 GPM
Tank Volume	2.9 Gal.
GENERAL
Certification	NSF, UL Listed.
Warning	Proposition 65 Warning – Applies to the State of CA only.
MPN	G4CBHS
